HVAC Motor

Supplying Demand SD51-102500-08 51-102500-08 HVAC Blower Motor 1/4 HP 1 Phase 2 Speed 230V 1075 RPM

Supplying Demand SD51-21909-01 51-21909-01 HVAC Blower Motor 3/4 HP 3 Phase 1 Speed, 208/230/460V 1725 RPM

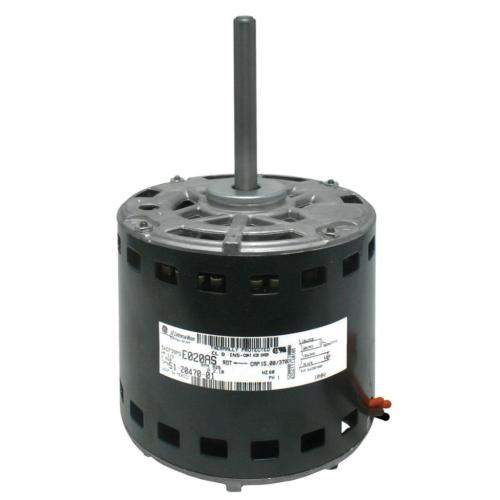

Supplying Demand SD51-24070-02 51-24070-02 HVAC Blower Motor 1/2 HP 1 Phase 4 Speed 120V 1075 RPM

Supplying Demand SD51-27211-03 51-27211-03 HVAC Blower Motor 1/3 HP 1 Phase 2 Speed 208/220/230V 825 RPM Blower Sleeve Bearing Direct Drive 50 / 60 Hz 825 RPM 1/3 HP 208 / 220 / 230 V 1-1/2 in. Shaft Length 3.20 A FLA 3.90 A LRA 5-5/8 in. Motor Body Diameter 5-1/4 in. Motor Body Length Shell-band / Shell-screw Mounting 2 Speeds 7-5/16 in. Overall Motor Length 2-1/16 in. Overall Shaft Length CCW Rotation 15/370 uF/V Run Capacitor 1/2 in. Shaft Diameter

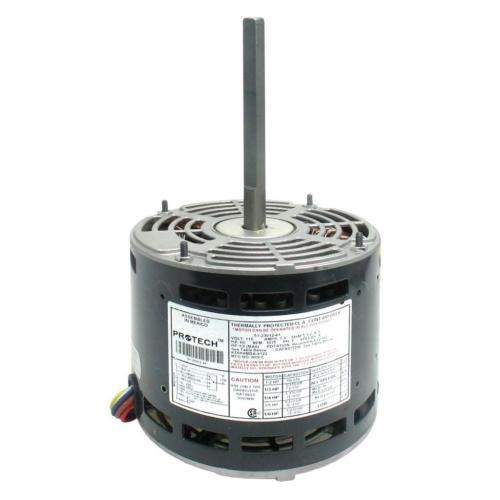

Supplying Demand SD51-23012-41 HVAC Blower Motor 1/6 - 1/2 HP 1 Phase 4 Speed 120V 1075 RPM

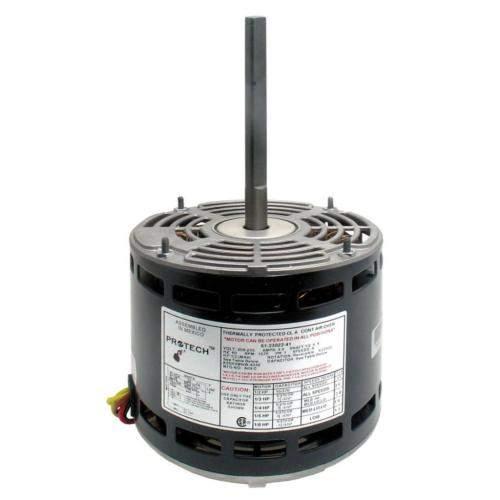

Supplying Demand SD51-23022-41 HVAC Blower Motor 1/6 - 1/2 HP 1 Phase 4 Speed 208/230V 1075 RPM

Supplying Demand SDFDL6001A FDL6001A HVAC Multi-HP Replacement Motor 1/2-1/6 HP 1075 RPM 115 Volts

Supplying Demand SDFD6001A FD6001A HVAC Multi-HP Replacement Motor 3/4-1/5 HP 1075 RPM 208-230V

Supplying Demand SDDL1036 DL1036 HVAC Direct Drive Blower Motor 115V 1075 RPM 1/3 HP

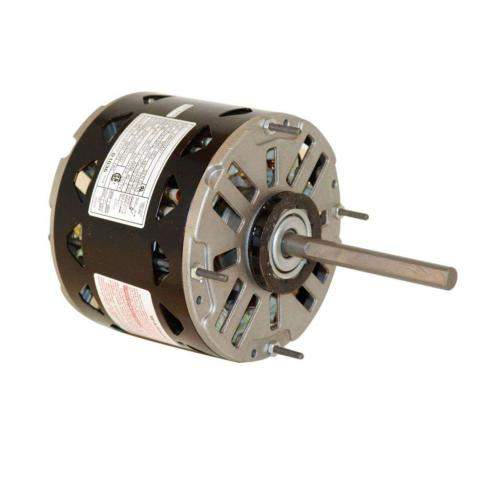

Supplying Demand SDD1036 D1036 HVAC Direct Drive Blower Motor 208-230V 1075 RPM 1/3 HP Phase: Single | Motor Design: Permanent Split Capacitor | HP: 1/3 | RPM: 1,075 | Number of Speeds: 3 | Voltage: 208-230V AC | Full Load Amps: 2.1 A | Frame: 48 | Usable @ 208V: Yes | Usable @ 200V: No | Motor Thermal Protection: Auto | Hz: 60 Hz | Ins. Class: B | Motor Shaft Rotation: CW/CCW | Max. Ambient Temperature: 40 °C | Lead Length: 26 in | Motor Enclosure Design: Open Air-Over | Motor Mounting Type: Ring | Motor Mounting Position: Horizontal | Number of Shafts: 1 | Motor Frame Material: Steel | Shaft Diameter: 1/2 in | Shaft Length: 4-1/2 in | Motor Bearings: Sleeve | Motor Shaft Design: Flat | Overall Length: 9-3/8 in | Length Less Shaft: 5-3/8 in | Mounting Holes: (4) #8-32 | Body Diameter: 5-5/8 in | Bolt Circle Diameter: 5-1/8 in | Stud Size: #8-32 | Ring to Ring Center: 4-15/16 in | Resilient Ring Diameter: 2-1/4 in | Capacitor Required: 2MDV4

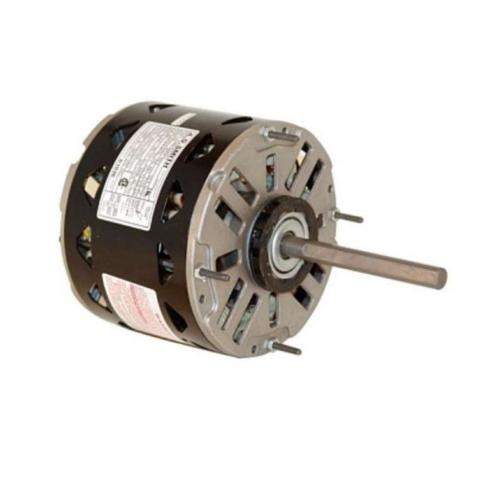

Supplying Demand SDD1076 D1076 HVAC Direct Drive Blower Motor 208-230V 1075 RPM 3/4 HP

Supplying Demand SDFD6000A FD6000A HVAC Direct Drive Blower Motor 208-230V 1075 RPM 1/2 to 1/6 HP

Supplying Demand SDTP-EC13-75 TP-EC13-75 HVAC Blower Motor 115/208-230V 1075 RPM 3/4 HP

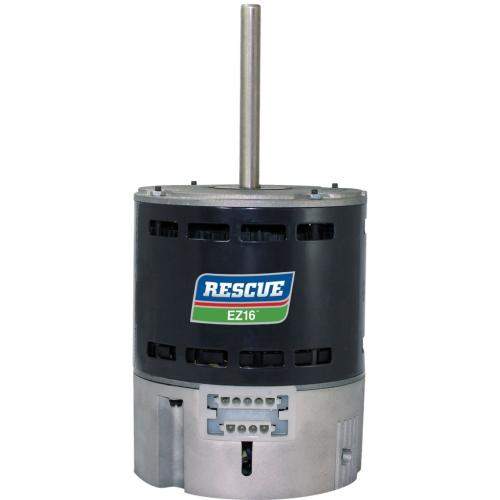

Supplying Demand SD5860 5860 HVAC Blower Motor 115/208-230V 1075 RPM 1-1/3HP Phase: 1 | Motor Type: ECM | HP: 1-1/3 | RPM: 1,075 | Number of Speeds: Variable | Voltage: 115/208-230V | Amps: 7.1-12.1 A | Insulation Class: B | Frame: 48 | Motor Thermal Protection: Electronically Protected | Hz: 60 Hz | Motor Shaft Rotation: CW/CCW | Max. Ambient Temperature: 40 °C | Motor Enclosure Design: Open Air-Over | Motor Mounting Type: Belly Band | Shaft Diameter: 1/2 in | Shaft Length: 5 in | Motor Bearings: Ball.

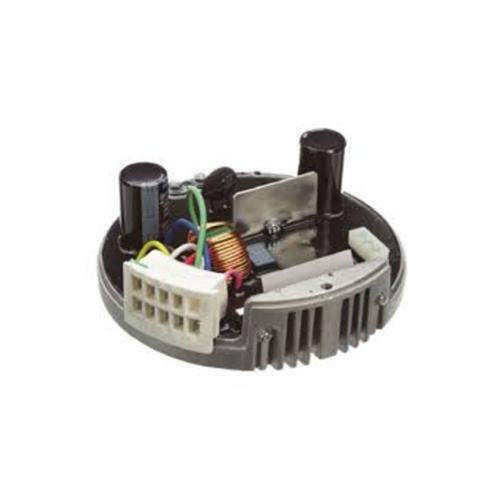

Supplying Demand SD6207ECTL 6207ECTL HVAC Control Module 3/4 HP 208-230V 6.0 A CCW/CW

Supplying Demand SD6203ECTL 6203ECTL HVAC Control Module 1/3 HP 208-230V 2.8 A CCW/CW
